Carbon Steel Forged Flange：
Forged flanges are used as a connection component for pipes, valves, pumps and other equipment to form a pipework system. They provide easy access for cleaning, inspection, modification or repairs. Flanges are usually welded onto pipes or screwed onto a threaded pipe end and then joined with bolts to make the connection.

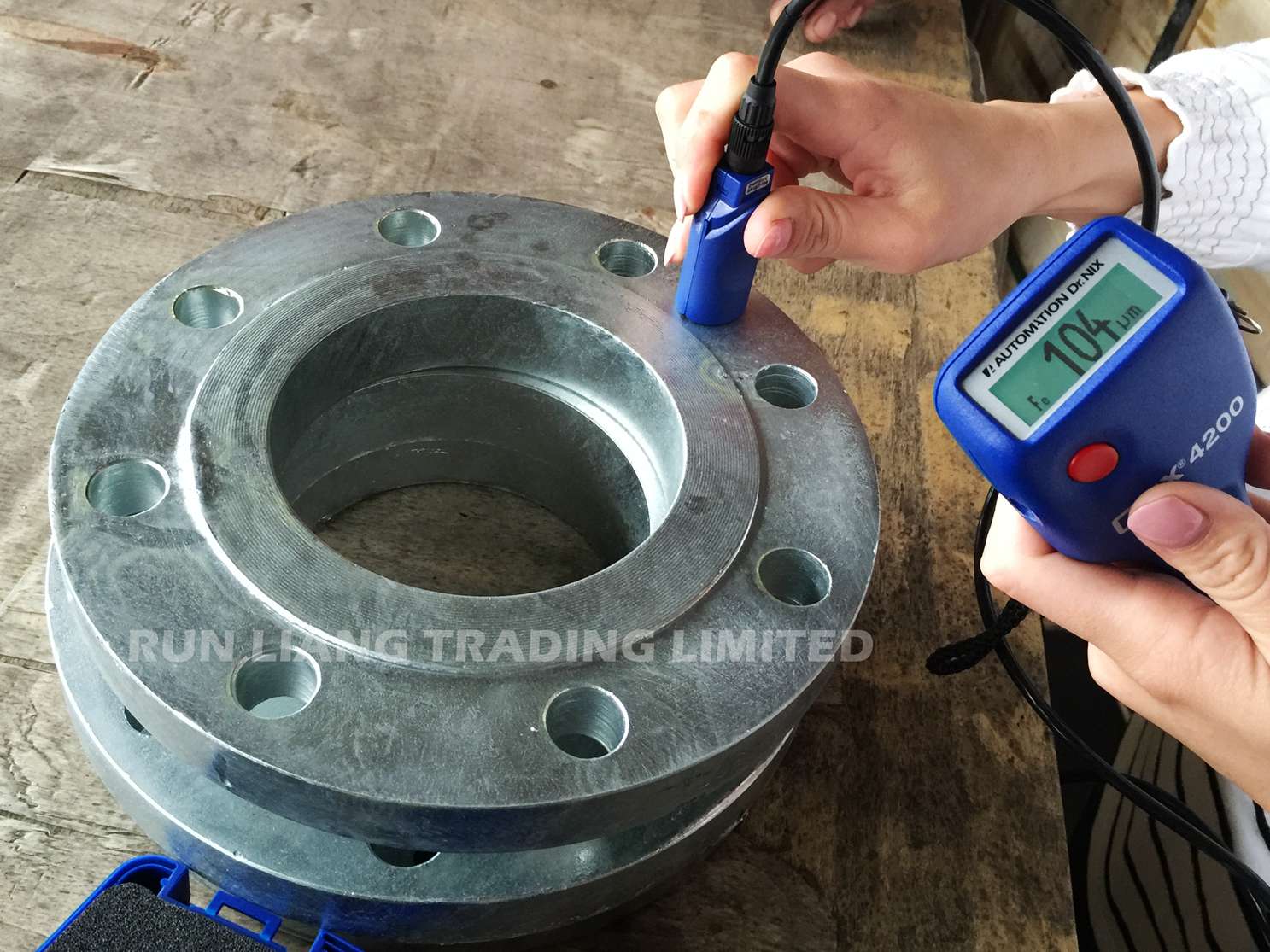

Coating: painting, anti-rust oil, Hot-Dipped Galvanization
Standard:
- American Standard
ANSI B16.5
Material: SA 105/ SA 105N/ RST 37.2
Pressure: CLASS 150,300,600,900,1500,2500
Size:1/2”-48”
Type: WELDING NECK, SLIP ON, BLIND, LAP JOINT, THREAED

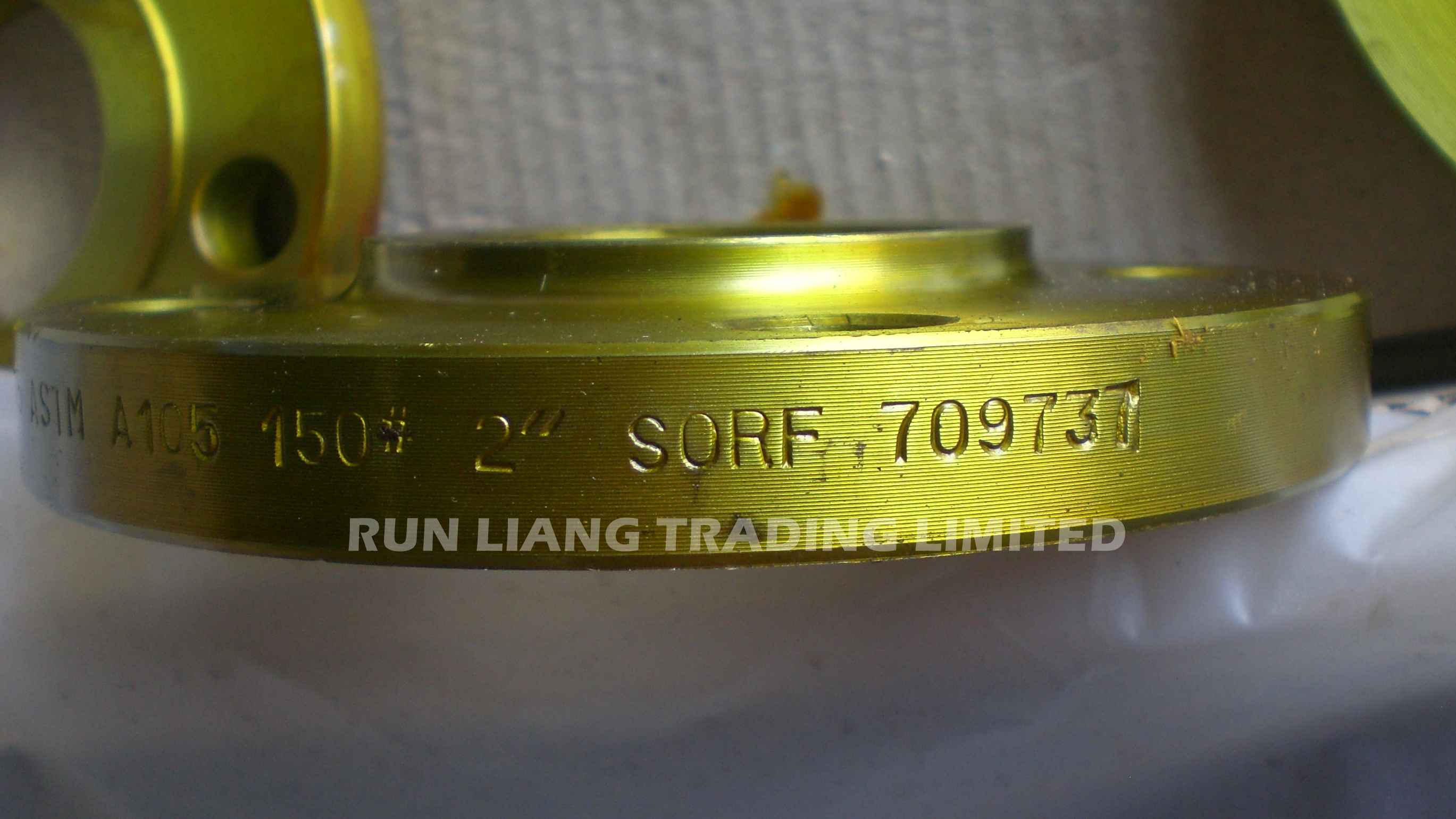

SORF

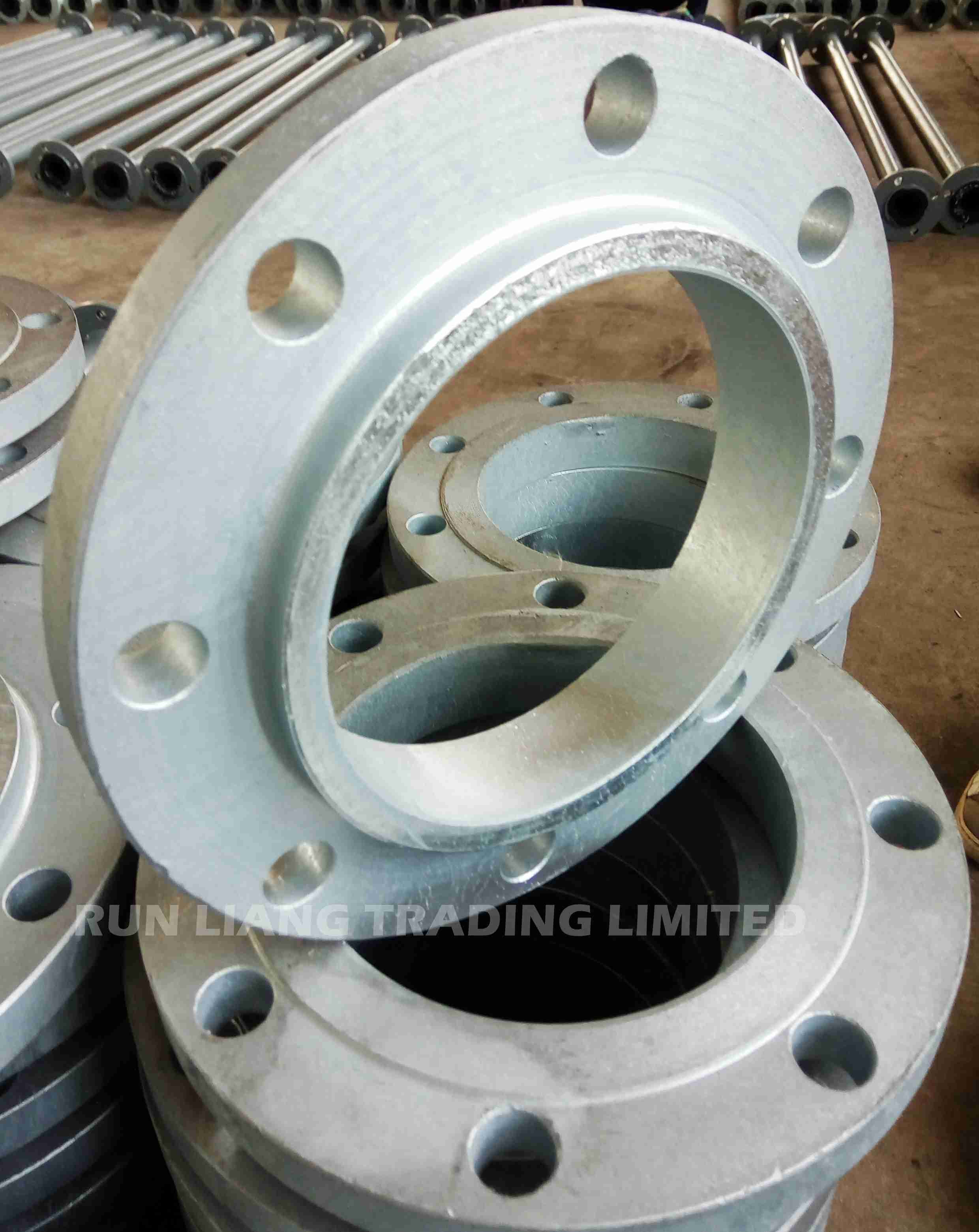

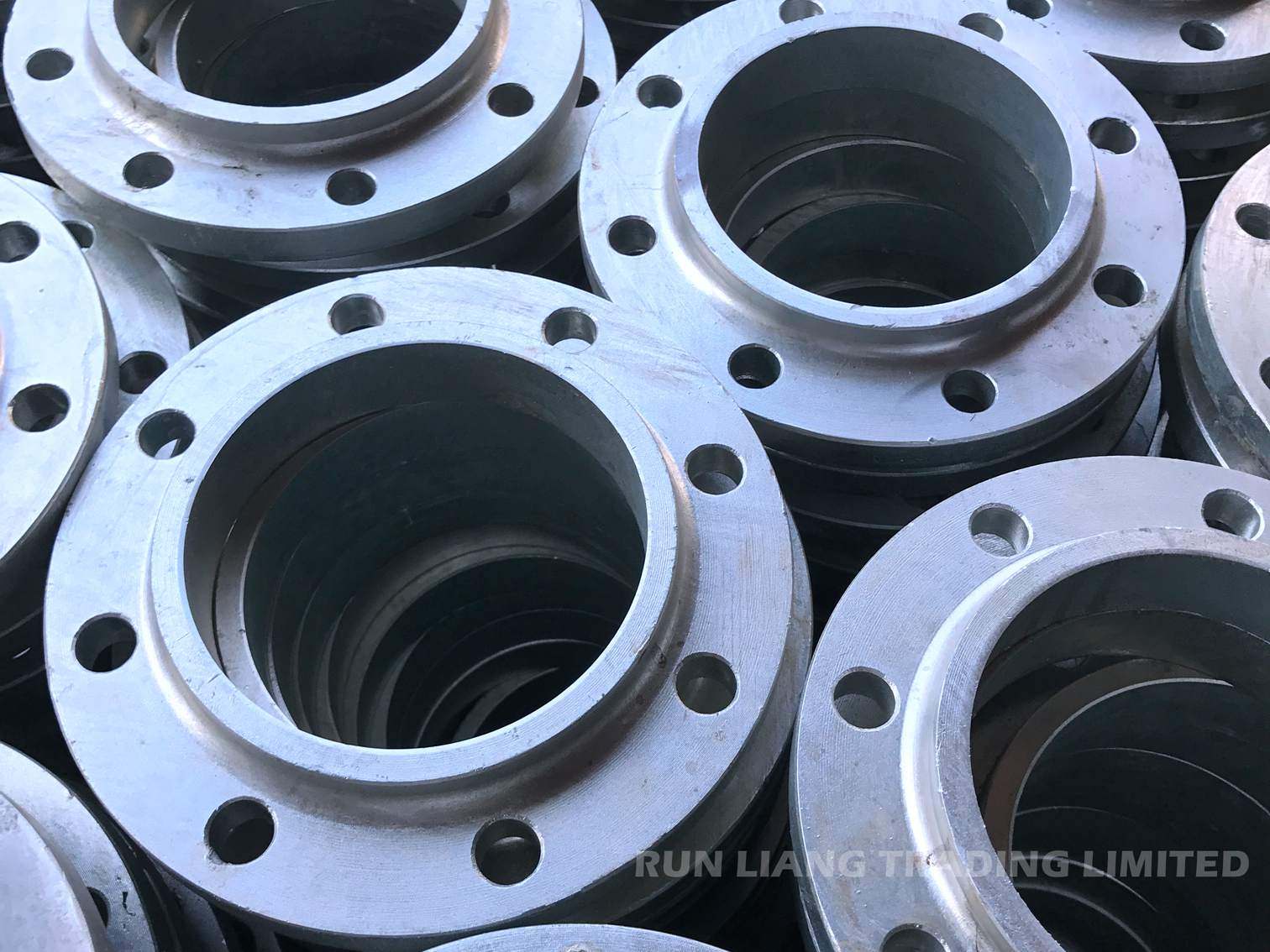

Hot-Dipped Galvanized

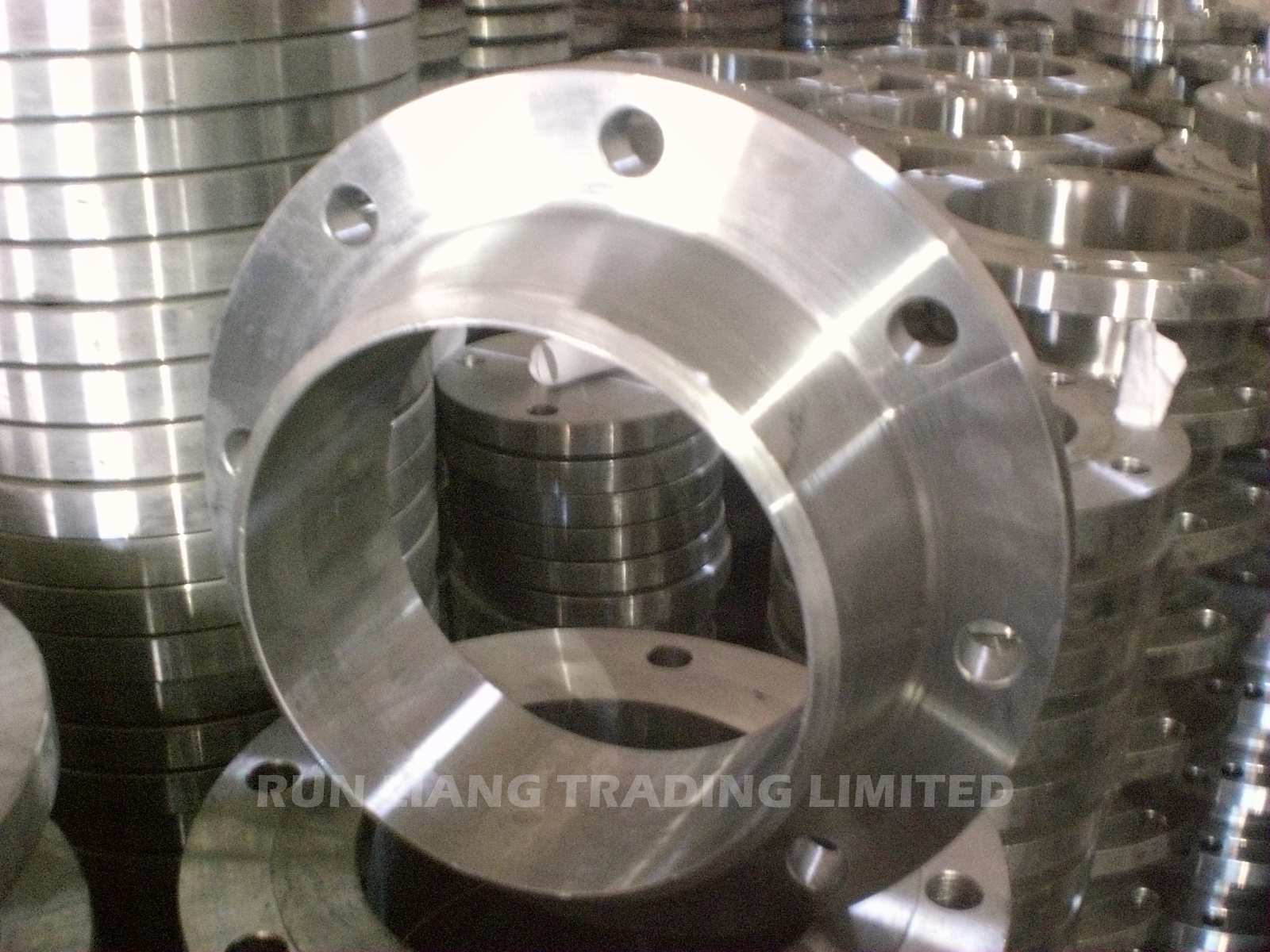

WNRF

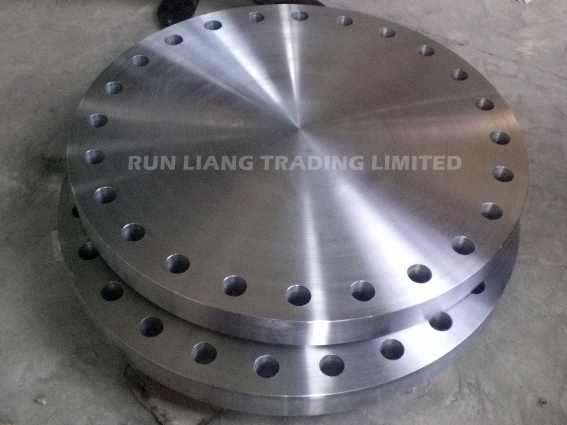

BLIND
ASME B16.47 SERIES B (API605)
Material: SA 105/ SA 105N
Pressure: CLASS 75,150,300,600,900
Size:26”-60”
Type: WELDING NECK, BLIND
ASME B16.47 SERIES A (MESS SP44)
Material: SA 105/ SA 105N
Pressure: CLASS 150,300,600,900
Size:12”-60”
Type: WELDING NECK, BLIND
- German Standard
DIN
Material: RST 37.2, S235JR
Pressure: PN6,PN10,PN16,PN25,PN40,PN64,PN100
Size:DN15-DN2000
Type: WELDING NECK - DIN2631,2632,2633,2634,2635,2637
PLATE- DIN2573,2576,2502,2503,2543,2544,2545
BLIND-DIN2527
SCREWED-DIN2565,2566
LAPPED-DIN2641,2642,2655,2656
- European Standard
EN1092-1:2002
Material: RST 37.2, S235JR, C22.8
Pressure: PN6,PN10,PN16,PN25,PN40,PN64,PN100
Size:DN15-DN2000
Type: 01,02,05,11,12,13
WELDING NECK TYPE 01
SLIP ON TYPE 12
THREADED TYPE 13
PLATE TYPE 01
LAPPED TYPE 02
BLIND BYPE 05
- British Standard

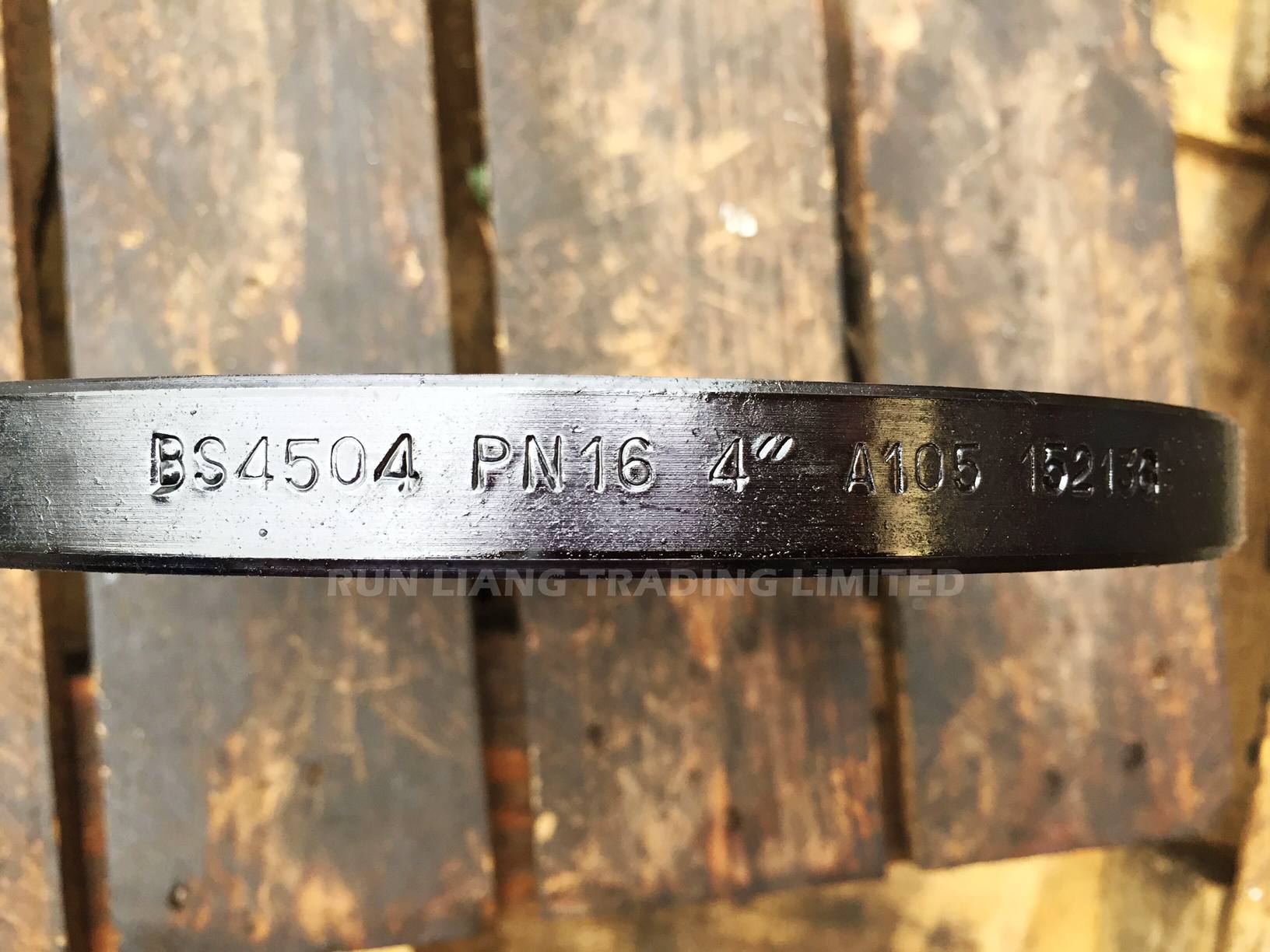

BS 4504
Material: RST 37.2, S235JR, C22.8
Pressure: PN6,PN10,PN16,PN25,PN40,PN64,PN100
Size:DN15-DN2000
Type:
PLATE 101
BLIND 105
WELDING NECK 111
SLIP ON 112
THREADED 113
Tappered Flange
BS 10 TABLE D/E
Material: RST 37.2, S235JR
Size:DN15-DN600
Type：PLATE, SLIP ON, THREADED
- Russian Standard
GOST 12820-80
Material: CT 20, 16MN
Pressure: PN6,PN10,PN16,PN25
Size:DN10-DN1600
Type: PLATE RF
GOST 12821-80
Material: CT 20, 16MN
Pressure: PN6,PN10,PN16,PN25,PN40,PN63
Size:DN10-DN1600
Type: WELDING NECK
GOST BLIND
Material: CT 20, 16MN
Pressure: PN6,PN10,PN16,PN25,PN40,PN63
Size:DN15-DN500
Type: BLIND
- Japanese Standard
JIS B2220-1984, KS D3576, KS B6216, KS B 1511-1982
Material: CS SS 400
Pressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K
Size: 15A-1500A
Type: SOP
JIS B2220-1984, JIS B2261, JIS B8210
Material: CS SS 400
Pressure: 5K, 10K, 16K, 20K, 30K, 40K
Size: 15A-1500A
Type: SOH
JIS B2220-1984, KS D3576, KS B6216, KS B 1511-1982
Material: CS SS 400
Pressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K
Size: 15A-1500A
Type: BLIND
- Italian Standard
UNI
Material: RST 37.2, S235JR, C22.8
Pressure: PN6,PN10,PN16,PN25,PN40,PN64, PN100
Size:DN10-DN2000
Type:
THREAEDED UNI-2253-67，2254-67,2255-67
BLIND UNI-6091-67,6092-67,6093-67
PLATE UNI-2276-67,2277-67,2278-67
WELDING NECK-UNI 2280-67,2281-67,2282-67,2283-67,2284-67
LAPPED- UNI 6089-67,6090-67
- African Standard
SABS 1123
Material: RST 37.2, S235JR
Pressure: 600KPA,1000 KPA,1600 KPA,2500 KPA,4000 KPA
Size:DN10-DN600
Type:
WELDING NECK-TYPE2
PLATE-TYPE3
SLIP ON-TYPE 4
BLINE-TYPE 8
