Cylinder Control Valve (Angle Seat Valve)：

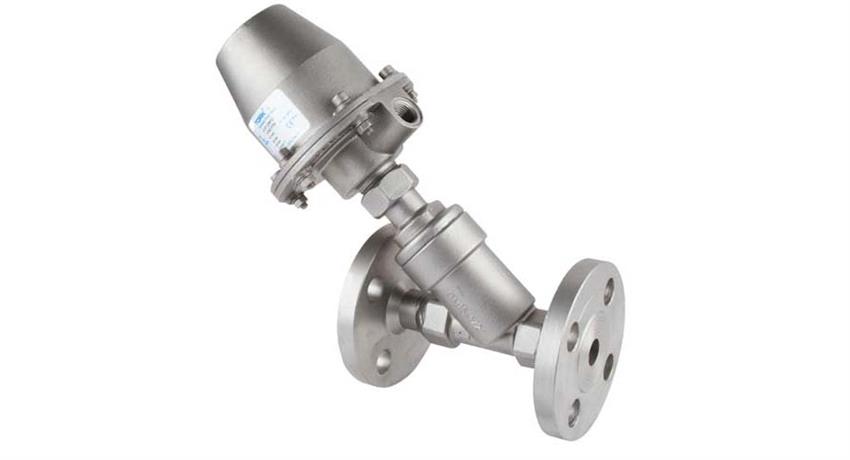

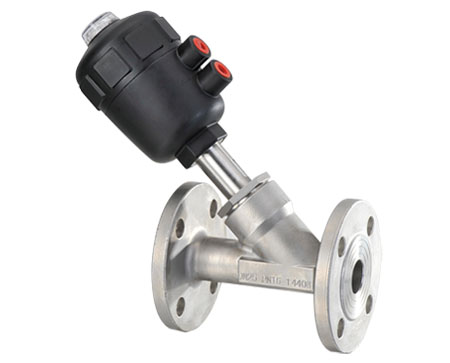

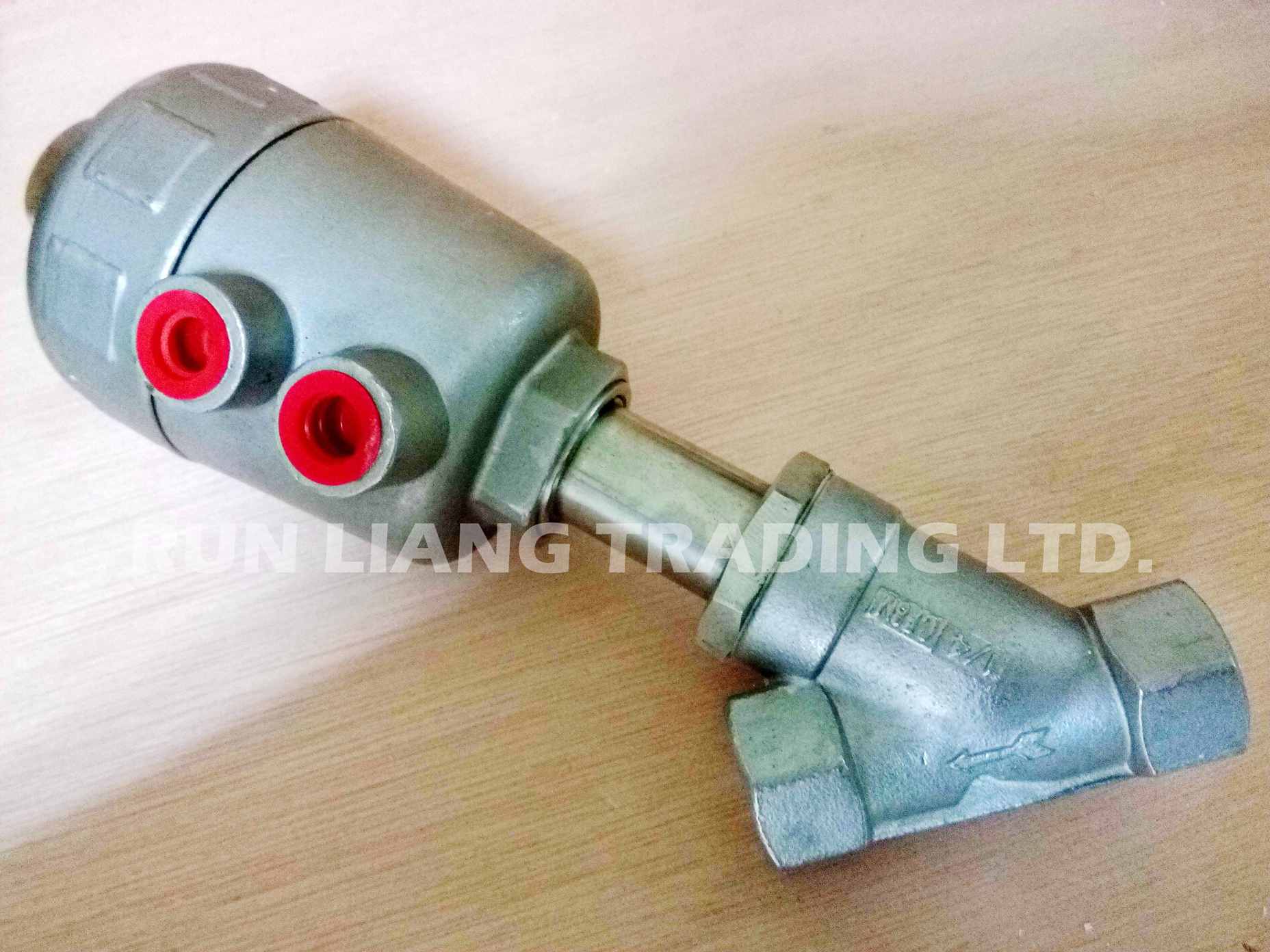

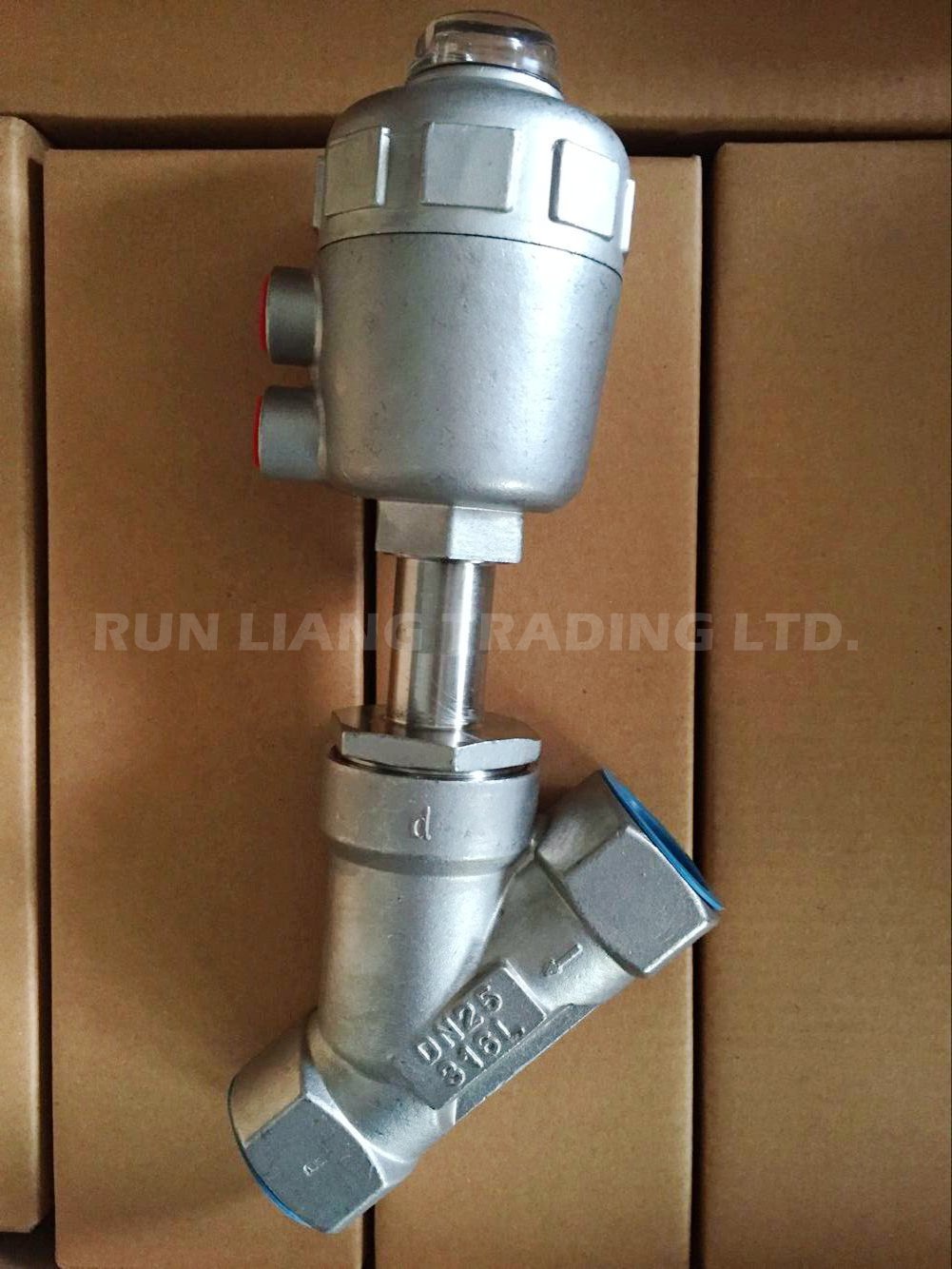

Cylinder Control Valve (Both Thread type and Flange Type)
A cylinder control valve is a pneumatically-controlled valve with a piston actuator providing linear actuation to lift a seal off its seat. The seat is set at an angle to provide the maximum possible flow when unseated.
Material:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Brass
Seal Ring: PTFE
Actuator Material: Plastic, Stainless Steel
Specification:
Size: DN15-DN65
Working Pressure: 0-2.5MPA
Working Temperature: -10℃~180℃
Medium: Neutral Gas, Neutral Liquid, Steam
Connecting Type: Thread or Flange
Thread End: BSP, NPT
